Last update: 15.03.2022

Back to the main page

Description: This is the Cycles render integration into Softimage.

Features:

  1. Builded with Cycles ver. 1.13 (commited at 13.03.2022)
  2. CPU and GPU rendering support
  3. Allows to render ICE-attributes of polygon meshes with context per-point or per-object
  4. Renders ICE-instances and instance models
  5. Renders ICE-strands as hairs
  6. Renders standrad XSI hairs

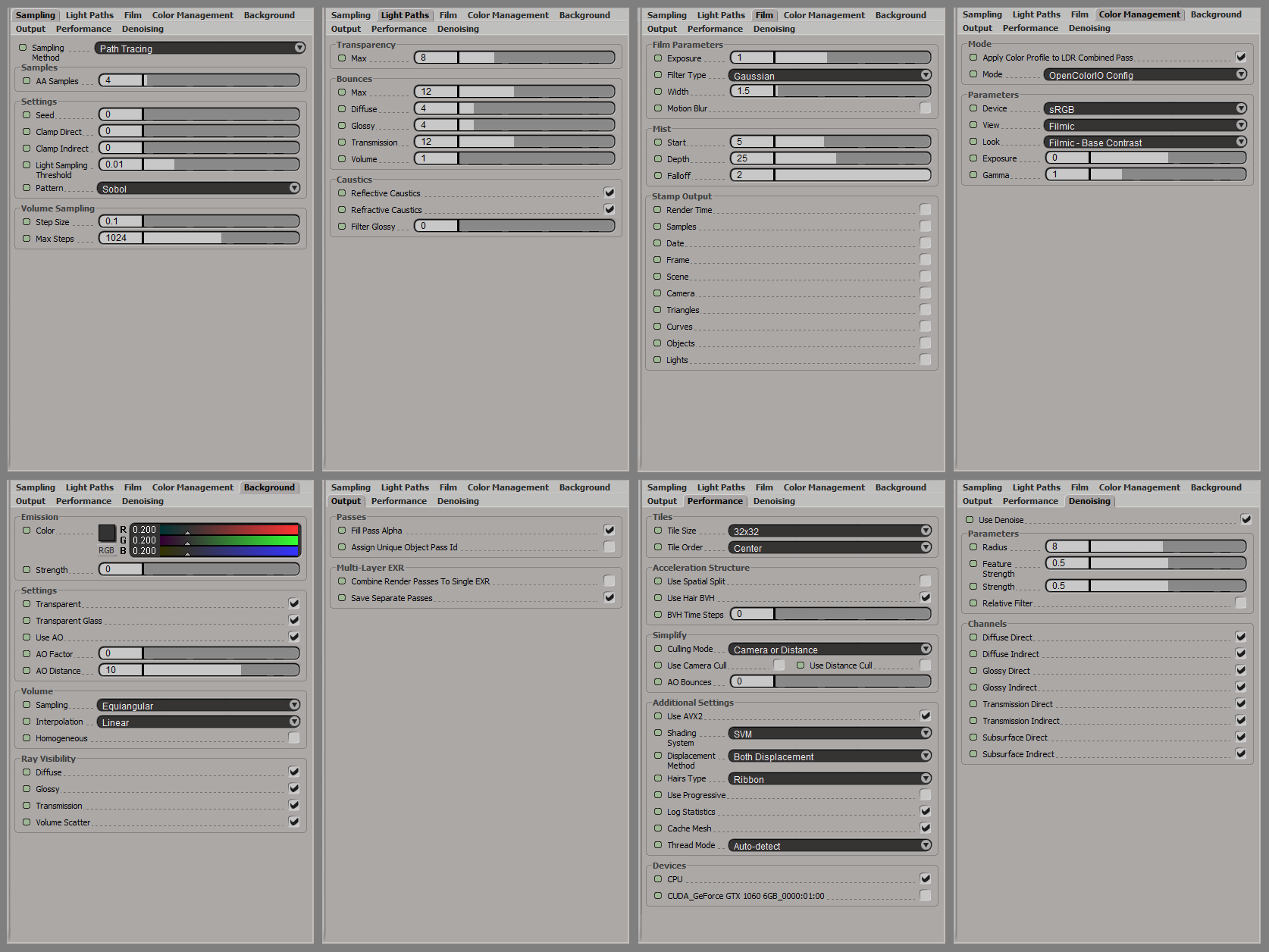

  7. Renders all Cycles passes (Combined, Depth, Mist, Normal etc.) and custom AOV (Color and Float)
  8. Renders any volume objects (in particular OpenVDB, emFluid and Explosia FX)
  9. Saves output rendered images as multi-layer EXR
  10. Saves cryptomatte passes

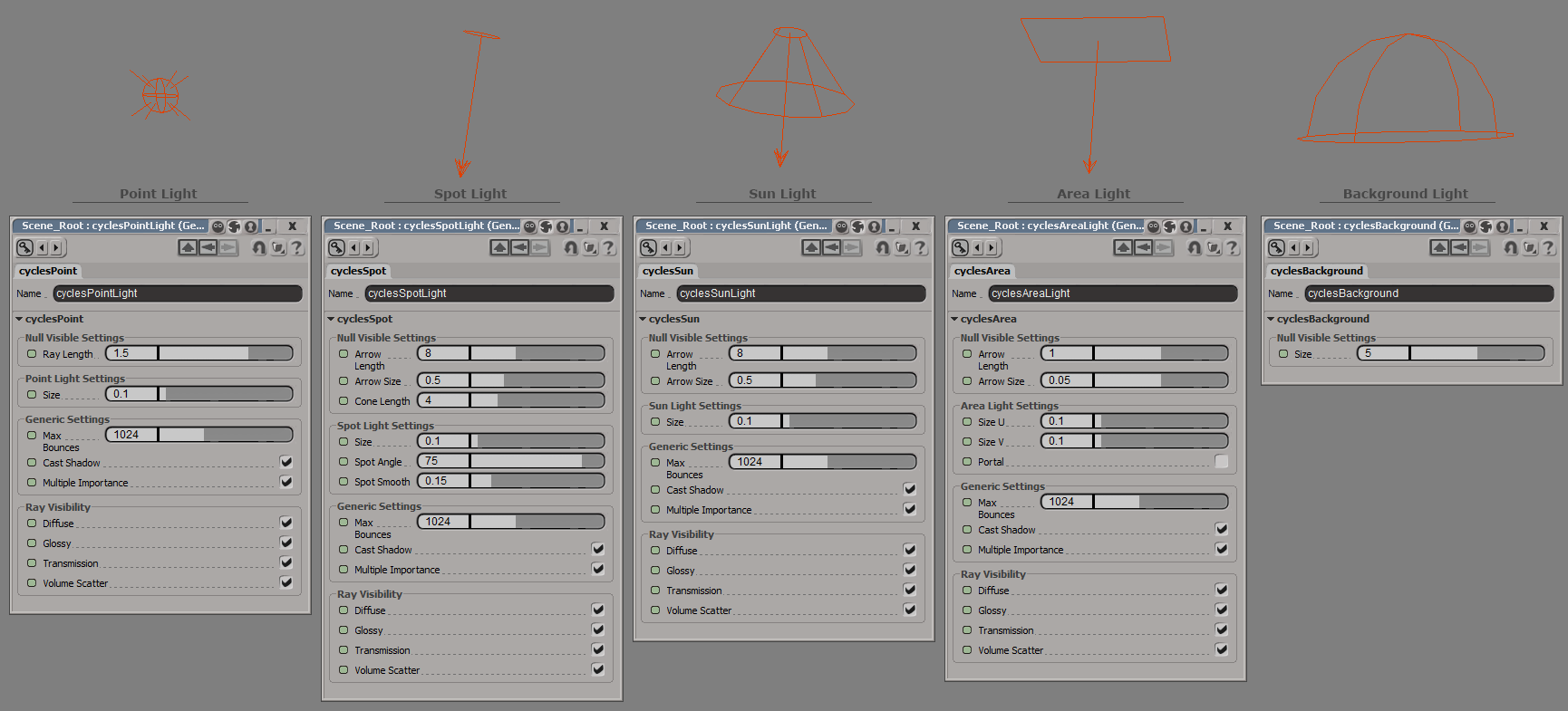

  11. Custom light primitives
  12. VDB Primitive for rendering animated and static OpenVDB volumes
  13. Geometry caching system
  14. OpenColorIO color profilies support with pre-builded Filmic config from Blender 3.x
  15. Shaderballs previews
  16. OSL-shaders support
  17. UDIM textures support
  18. Baking lightmaps
  19. "How to..." manual with pictures
  20. HDR Master addon for manipulating by hdr-environments
  21. Shader packs
  22. SToon addon for cartoon rendering

Download: version 1.12

How to use: Install as usual addon for Softimage. Switch to the Cycles Renderer and you are ready to render. Use official Cycles manual for references to render parameters, shaders and other properties.

"How to..." manual contains short tutorials with description of main functions and features. Link to download.

Remarks:

  1. All copies of a light source shares the same shader. Make it local to tweak shader parameters independently
  2. Sometimes shaderball preview does not updated during you change the shader parameters. Simply close preview window and open it again
  3. Does not turn on the OSL-shaders support, if it is not necessary. This increase the render time
  4. Does not turn on the deformation blur of objects, if it is not really necessary. It can dramatically increase the render time
  5. For using UDIM-textures, select as input texture only the first one with the tile 1001, all other textures will be used automatically. The render find the tile of the texture by parsing it name from right to left, so the texture with the name 1001_diffuse_1002.png will be interpreted as 1002 tile
  6. Does not activate using UDIMs on objects without uvs. This may crash the renderer
